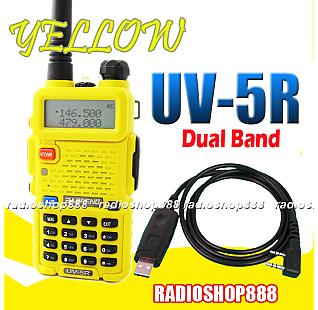

NEW BAOFENG UV-5R 4W 136-174/400-480Mhz    BAOFENG UV-5R The transcevier is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability 　 VHF/ UHF  DUAL-BAND TWO WAY RADIO Frequency Range: 136-174 / 400-480MHz Dual-Band Display, Dual Freq. Display, Dual-Standby Output Power: 4 /1Watts 128 Channels 50 CTCSS and 104 CDCSS Built-in VOX Function 1750Hz Brust Tone FM Radio (65.0MHz-108.0MHz) LED Flashlight Large LCD Display Hight /Low RF Power Switchable 25KHz/12.5KHz Switchable Emergency Alert Low Battery Alert Battery Saver Time-out Timer Keypad Lock Monitor Channel Channel Step: 2.5/5/6.25/10/12.5/25KHz ROGER SET ■  Dual band, dual display, dual standby ■  A/B band independent operation ■  128 groups channels storage ■  Shortcut menu operation mode ■  VFO & Memory channels scan ■  Emergency Alarm ■  Tri-color background light selectable ■  0~9 grades VOX selectable ■  PTT & ANI ID ■  FM radio and 25 stations storage  ■  Voice companding ■  CTCSS/DCS coder & tone searching ■   ■  PC programmable ■  Wide/Narrow Band(25kHz/12.5kHz) ■  Transmitter time-out timer(TOT) ■  High/Low TX power selectable ■  Busy channel lock-out(BCLO)  Specifications :  Item number  UV-5R General  Frequency Range    65-108MHz (FM Receive only)  136-174MHZ and 400-480HZ (TX/RX)            Channel No.  128  Frequency Stability  ±2.5ppm  Antenna  High gain DualBand  antenna  Antenna Impedance  50Ω  Operating Voltage  DC 7.4V  Mode of operation   Simple or semi-duplex  Dimension（W x H x D）  100 x 52 x 32 mm  Weight  250g（including battery, antenna） Transmitter  Output power  4W / 1W (Max 5W)  Modulation Mode  16kΦF3E / 11kΦF3E  Maximum deviation  ＜5kHz(Wide) / ＜2.5kHz(Narrow)  Spurious Radiation  ＜7μW  Adjacent Ch. power  ≤-65dB(Wide) / ≤-60dB(Narrow)  Pre-emphasis characteristics  6dB  Current  ≤1.6A(5W)  CTCSS/DCS deviation  0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)  Intermediation sensitivity  8-12mv  Intermediation distortion  ＜10% Package Include : 1 x UV-5R Yellow VHF136-174Mhz UHF 400-480Mhz) 1 x 7.4V 1800mah Li-ion Battery Pack 1 x Antenna 136-174/400-470Mhz 1 x Belt Clip 1 x USB Cable 1 x ENG Manual 1 x Desktop Charger ( 100V ~ 240V ) (2pin USA or 3pin UK or 2pin EURO or 2pin Australia) 1 x PTT Earpiece for free
